The Heat is On: Simple vs. Smart Chamber Heating in the Creality K1C and Qidi X-Plus 3
Printing with tough materials like ABS plastic often feels like rolling dice. You spend hours waiting for a print, only to find a bent, cracked, and useless part when it's done. As high-speed 3D printers get faster than ever in 2025, the biggest challenge isn't speed anymore - it's controlling heat. Being able to control the temperature inside your printer has become the most important factor when working with strong, professional-grade plastics.
Two popular fast printers, the Creality K1C and the Qidi Tech X-Plus 3, show this challenge perfectly. They solve the heat control problem in two completely different ways: keeping heat in versus actively making heat. This article gives you a detailed, technical, and practical comparison of these two methods. We're not trying to pick a "winner," but to give you the knowledge to understand which technology fits your printing goals, especially if you want to work with materials like ABS.
The Science Behind ABS Plastic
Why Parts Warp and Crack
To master printing difficult materials, we need to understand the science that makes them fail. The main problem is thermal contraction - when hot plastic cools down and shrinks. This is especially bad with plastics like Acrylonitrile Butadiene Styrene (ABS).
How Shrinking Works
Simply put, plastics get smaller as they cool down. ABS has a high coefficient of thermal expansion, which means it shrinks much more than a material like PLA when it cools from its printing temperature (around 240-260°C) down to room temperature. When a 3D printer puts down a hot layer of plastic on top of a cooler, already-solid layer, a battle of forces starts.
The Damaging Cooling Process
This temperature difference creates stress inside the part. The new, hot layer wants to shrink as it cools, but it's stuck to the layer below it, which has already shrunk. This pulling force builds up with every new layer. On a large print, the stress becomes huge. At the corners of the model, where the forces are strongest, the stress can become powerful enough to physically lift the model off the build plate. This is warping. The same thing happens between layers - if the temperature difference is too big, the layers won't stick properly or will pull apart as they cool at different speeds, causing splitting or cracking.
The Stable Temperature Answer
The only effective way to fight this is to reduce the temperature difference throughout the printing process. By surrounding the print and keeping a stable, warm temperature around it, you keep the entire model just below its glass transition temperature (the point where it starts to get soft). This lets the part cool down slowly and evenly after the print finishes, greatly reducing internal stress. This is what a heated chamber does.
The K1C's Heat-Trapping Method
How Heat Trapping Works
The Creality K1C, like many enclosed printers, uses a method of keeping heat in rather than making new heat. It doesn't have a special heater for the chamber - instead, it cleverly uses the leftover heat made by its own parts.
The Case as Heat Keeper
The K1C's main tool for heat control is its full enclosure. The clear door and top lid work like insulation, trapping heat inside the build area. This stops air drafts and helps create a warmer environment than the room around it, which is basic requirement for printing anything harder than PLA.
What the Heated Bed Does
In a heat-trapping system, the heated bed is the main heat source. When set to 100°C for an ABS print, the bed gives off a lot of heat energy. This energy, along with leftover heat from the hotend, gets captured by the enclosure, slowly raising the temperature inside the chamber. The final chamber temperature depends directly on the bed temperature, the size of the print on the bed, and how well the enclosure can hold this second-hand heat.
System Limits
The biggest limitation of heat trapping is the lack of direct control. You cannot set a target chamber temperature. The air temperature is just a side effect, not something you control. It can change based on how warm your workshop is, the size of the part being printed (a larger part can block heat from rising), and your bed temperature settings. This can create a "heat ceiling," where the chamber might only reach 40-50°C, which might not be enough for large or complex ABS parts.
Real-World Results for Users
How It Works with PLA and PETG
For low-temperature materials, the K1C's heat-trapping system works perfectly and is often ideal. PLA and PETG don't need high air temperatures and can even have problems with heat creep (where heat travels too far up the plastic path, causing clogs) if the chamber gets too hot. The enclosure on the K1C provides just enough stability to prevent warping in PETG without creating an overly hot environment.
The ABS/ASA Challenge
When printing ABS or ASA, the user experience becomes more hands-on. Small to medium-sized parts can often be printed successfully, especially after the chamber has had time to "heat soak." However, as print sizes increase, so does the risk of failure. A large part with a big footprint is very likely to warp because the trapped heat may not be hot enough or stable enough to keep the entire part evenly warm.
What Users Need to Do
Success with challenging materials on a heat-trapping machine often involves more than just hitting "print." It requires careful tuning. Users will rely heavily on adhesion helpers like brims and rafts, make sure the build plate is perfectly clean, and try to keep room temperature consistent. It's a system where success is possible, but it's less of a "start-and-forget" process and requires a deeper understanding of the printing variables.
The X-Plus 3's Active Heat Method
A Temperature-Controlled Environment

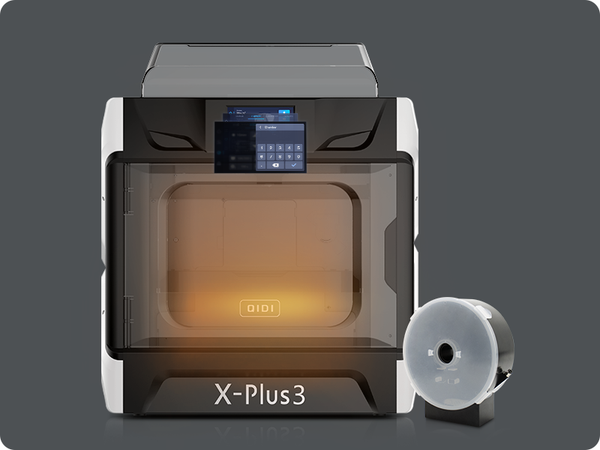

The Qidi Tech X-Plus 3 uses a completely different and more direct method: active chamber heating. This system is designed not just to trap heat, but to make and control it with precision.
The Special Chamber Heater
The key part is an independent heating element, complete with a circulation fan, located inside the build chamber. This system's only job is to heat the air inside the enclosure to a specific, user-chosen temperature. It is a proactive system, not a reactive one.
The Power of Temperature Control
This special heater is controlled by a thermostat. The user can go into the printer's menu and set a target chamber temperature, for example, 65°C. The printer will then turn on the heater and fan, bringing the chamber to that temperature and, more importantly, actively keeping it there throughout the entire print. It constantly measures the air temperature and turns the heater on and off as needed, creating a truly stable and predictable heat environment.
Ensuring Heat Stability
By separating chamber heating from the heated bed, the X-Plus 3 eliminates many of the variables that cause problems in heat-trapping systems. The air temperature is no longer dependent on room temperature or print size. This creates a uniform heat blanket around the model, greatly reducing the temperature differences between layers that cause warping and cracking.
Real-World Results for Users
Unlocking Professional Plastics
This is the biggest advantage of active heating. It transforms the process of printing materials like ABS, ASA, Nylon, and even some Polycarbonates from a challenge into a reliable, repeatable workflow. Large, complex parts that would almost certainly fail in a heat-trapping environment can be produced with high confidence.
Better Part Quality
The benefits go beyond simply preventing print failure. Parts printed in a consistently hot chamber have much better layer bonding. The controlled environment allows the layers to fuse together more completely, resulting in functional parts that are significantly stronger and more isotropic (having similar strength in all directions). For any application where mechanical performance is critical, this is an essential benefit.
What Users Experience
Using an actively heated printer for high-temp materials is more like operating scientific equipment. The workflow is streamlined: you select your material, set the required bed and chamber temperatures, wait for the machine to pre-heat and stabilize, and then begin the print. It removes a major variable from the complex equation of 3D printing, allowing the user to focus on design and material properties rather than fighting their machine's heat limitations.
Direct Comparison
Where Differences Matter Most
To make the distinction clear, let's analyze how these two heating approaches perform in specific, real-world scenarios. This is not about which printer is "better," but about which technology is the right tool for a given job.
| Feature / Scenario | Heat Trapping Method (K1C's Method) | Active Chamber Heating (X-Plus 3's Method) |
|---|---|---|
| Printing a Large ABS Part (200x200mm base) | Higher risk of warping and layer splitting. Success depends heavily on bed adhesion, brims, and stable room temperature. | High probability of success. The stable 65°C environment minimizes heat stress across the large part. |
| Mechanical Strength of Final Part (Layer Bonding) | Good, but can be inconsistent. Tiny cracks may form between layers if air temperature changes. | Excellent and consistent. The controlled environment promotes optimal fusion between layers, resulting in stronger parts. |
| Material Variety | Excellent for PLA, PETG, TPU. Capable of printing smaller ABS/ASA parts with tuning. Struggles with Nylon, PC. | Excellent for ABS, ASA, Nylon, PC. Can also print PLA/PETG (often with the door open or lid off to prevent heat creep). |
| Energy Use | Lower, as there is no special chamber heater. | Higher, due to the power draw of the independent heater to maintain chamber temperature. |
| Ease of Use for High-Temp Prints | Requires more user intervention, tuning, and "babysitting." A learning curve is involved. | Significantly easier and more "set-and-forget." Removes a major variable, leading to higher repeatability. |
| Warm-up Time | Chamber heats up passively as the bed heats, so there's no extra "chamber pre-heat" time. | Requires a dedicated pre-heat cycle for the chamber to reach the target temperature before the print starts. |
Making Your Choice
Who Should Use Heat Trapping?
The heat-trapping approach is an excellent fit for a specific type of user. This includes the hobbyist who prints mainly in PLA and PETG but wants the option to experiment. It's also for the user who only occasionally needs to print small functional parts in ABS or ASA and enjoys the process of tuning and adjusting their printer to overcome challenges. For individuals where lower initial cost and reduced energy use are primary decision-making factors, this method provides a capable and efficient platform.
Who Should Use Active Heating?
Active heating is designed for users with more demanding requirements. This is the engineer, prosumer, or serious hobbyist whose main goal is creating strong, dimensionally accurate functional parts. It is essential for users who plan to frequently print with ABS, ASA, Nylon, and other professional-grade materials. Anyone who values reliability, repeatability, and a streamlined workflow above all else will find the investment in active heating pays for itself in saved time and material. For small businesses or print farms, where failed prints equal lost money, it's a mission-critical feature.
Common Questions
Frequent Chamber Heating Questions
Q1: Can I upgrade a heat-trapping printer to have active heating?
A: While DIY solutions exist, they come with significant complexity and risk. Adding a heater requires finding appropriate parts, modifying firmware to control it, and ensuring it's all done safely. A factory-built system is engineered and tested for safety and performance, including features like thermal runaway protection that a DIY setup might lack. It's possible, but not a project for beginners.
Q2: Does active heating cause "heat creep" and clog the hotend?
A: This is a valid concern. If the chamber is too hot, heat can travel up the plastic path past the "melt zone," causing the plastic to soften too early and leading to a clog. However, well-designed systems like that found on the X-Plus 3 account for this with powerful hotend cooling fans that create a pocket of cooler air right around the heatsink, effectively preventing heat creep even in a 65°C environment.
Q3: Do I need a heated chamber for PLA or PETG?
A: Generally, no. An enclosure is helpful for PETG to prevent drafts, but an actively heated chamber is usually unnecessary and can be harmful for PLA. PLA has a very low glass transition temperature and can soften easily in a hot chamber, leading to clogs. This is why actively heated printers often tell users to print PLA with the door or lid open.
Q4: What are the safety considerations for an actively heated chamber in 2025?
A: Modern printers with this feature are built with safety as a priority. Look for machines with certified electronic components (like UL or CE markings), strong thermal runaway protection on all heating elements (including the chamber heater), and high-quality wiring. As with any machine that generates heat and potentially releases fumes from plastics, it should always be operated in a well-ventilated area.
Final Thoughts
The choice between a system like the Creality K1C and one like the Qidi Tech X-Plus 3 is not a simple matter of comparing specification sheets. It is a choice between two distinct approaches to heat management. One path, heat trapping, offers simplicity, efficiency, and accessibility, providing a gateway to high-temperature printing for those willing to tune the process. The other path, active chamber heating, offers mastery, control, and reliability, delivering a professional-grade tool for conquering the most demanding engineering materials. By understanding the fundamental impact these heating systems have on the printing process, you are now fully equipped to choose the machine that best aligns with your projects, materials, and long-term 3D printing goals.
