8K vs. 9K: A 2025 Deep Dive

In the competitive resin 3D printing market of 2025, marketing terms like "8K" and "9K" are everywhere. It's easy to understand why users get confused. Does a higher "K" number automatically mean sharper, more detailed prints? This question is at the center of choosing between two top competitors in the high-resolution desktop space: the Phrozen Sonic Mini 8K S and the Elegoo Mars 4 Ultra. One represents a refined, proven 8K system, while the other pushes the specification sheet with a 9K screen. This article will cut through the marketing language. We will provide a complete, user-focused breakdown of what these numbers actually mean for your prints. We won't just compare specification sheets; we'll explore the factors that truly impact detail, speed, and ease of use to help you understand which technological approach might better suit your specific projects—from detailed miniatures to functional prototypes.

The "K" Problem

The race for higher resolution numbers can be misleading. A 9K printer isn't automatically better than an 8K one. To understand why, we need to look beyond the marketing and focus on the core technology that determines print quality.

Understanding "K" Resolution

The "K" in 8K or 9K simply refers to the approximate number of horizontal pixels on the monochrome LCD screen that cures the resin. An 8K screen has roughly 7,680 horizontal pixels, while a 9K screen has around 8,640. Think of this as an ingredient list for a recipe. It tells you what's inside, but it doesn't describe the final taste of the dish. The total number of pixels is only one part of a much larger equation that determines the final quality of a printed object.

The Most Important Number

The true measure of a printer's potential detail is its XY resolution, measured in microns (µm). This number represents the actual size of a single pixel, which defines the smallest possible feature the printer can create on the horizontal plane. Consider a simple comparison: a 60-inch 4K TV and a 32-inch 4K TV both have the same "K" resolution. However, the image on the smaller 32-inch screen is significantly sharper because the same number of pixels are packed into a smaller area. This is pixel density. The formula is simple: Screen Size + "K" Resolution = XY Resolution. A printer with a smaller screen and a lower "K" count can potentially have a better (smaller) XY resolution than a printer with a larger screen and a higher "K" count.

Beyond the Pixels

A high-resolution screen is useless without a high-quality light source to back it up. The UV light engine's job is to project light through the pixels on the LCD to cure the resin. The evenness and focus of this light are critical. A system using a COB (Chip on Board) source with a Fresnel lens to ensure parallel light rays will cure each pixel with sharp, well-defined edges. In contrast, a less advanced matrix of LEDs without proper alignment can cause light bleed, where light scatters and partially cures nearby areas. This "pixel blur" can cancel out the advantage of a high-resolution screen. A superior light engine on an 8K printer can easily produce sharper results than a 9K printer with a mediocre one.

In-Depth Comparison

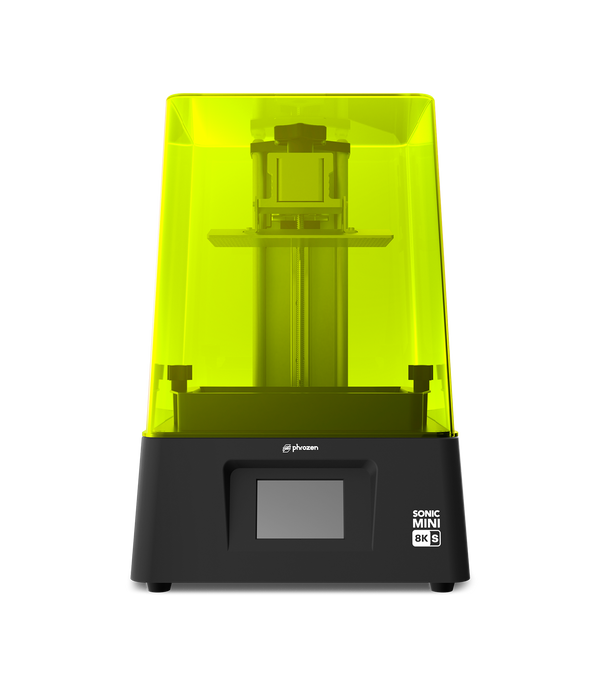

Let's move from theory to practice. Here is a structured comparison of the Phrozen Sonic Mini 8K S and the Elegoo Mars 4 Ultra, linking their features to real-world outcomes for you, the user.

Print Quality and Detail

This is the central battleground. On paper, the Elegoo Mars 4 Ultra boasts an impressive 18µm XY resolution, a direct result of its 9K screen. The Phrozen Sonic Mini 8K S comes in with a 22µm XY resolution. What does this 4-micron difference truly mean?

For miniature painters and sculptors working on 28-32mm scale models, the difference can be noticeable under magnification. The 18µm resolution may render slightly finer fabric textures, sharper decorative details on armor, or more defined facial features. However, we are reaching a point of diminishing returns. For the naked eye, the difference between a well-calibrated 22µm print and an 18µm print can be difficult to spot.

For general hobbyists printing larger display pieces or functional prototypes, this 4µm difference is almost entirely academic. The surface quality will be more heavily influenced by layer height, anti-aliasing settings, and resin choice than by this minor gap in XY resolution.

Furthermore, we must consider the light engines. Phrozen has historically focused on developing uniform light sources to maximize the potential of their screens. The Sonic Mini 8K S utilizes a system designed for high light uniformity, ensuring that the 22µm pixels are rendered as accurately as possible. The Mars 4 Ultra's system is also highly capable, but the ultimate sharpness comes from the synergy between the screen, the light source, and the machine's Z-axis stability.

Speed and Workflow

In 2025, printing speed is not just about a single number on a box. It's about the entire workflow. Both printers advertise high maximum speeds, often enabled by technologies like Elegoo's ACF (Advanced Conductive Film) release film. This film has a lower suction force than traditional FEP, allowing the build plate to separate from the vat film much faster between layers.

However, these "max speeds" are typically achieved only in draft modes with specific, fast-curing resins. For high-detail prints, you will be running both machines at more conservative, comparable speeds to ensure accuracy.

The leveling process is a critical usability factor. The Mars 4 Ultra uses a straightforward four-point leveling system that is reliable and easy for beginners. The Sonic Mini 8K S employs a similarly user-friendly system, a hallmark of Phrozen's design philosophy. Both have moved past the cumbersome single-bolt systems of older generations.

The build plate surface also affects workflow. A laser-etched surface, like that often found on Elegoo machines, provides excellent adhesion that can be a lifesaver for beginners. Phrozen's build plates are also engineered for strong adhesion, though the specific texturing may differ. Both are significant improvements over the simple sandblasted plates of the past.

Vat design is another quality-of-life consideration. Metal vats are more durable than plastic ones, and features like pour spouts and max-fill lines simplify handling. The ease of replacing the release film (FEP or ACF) is also a long-term maintenance factor to consider.

Build Volume and Footprint

Here, the specifications provide a clear picture. We can compare the build volumes to see what they enable in practical terms.

Note: These are representative values for this class of printer in 2025.

The Mars 4 Ultra's wider Y-axis might allow you to print a full squad of five 28mm miniatures at once, while the Mini 8K S's taller Z-axis could be beneficial for printing a single, larger character model or a tall, thin object in one piece. The slightly larger overall build plate area of the Mini 8K S might be better for arranging multiple small parts.

In terms of physical footprint, both machines are designed for the desktop. They are compact and will fit into most hobby spaces. However, it's always wise to check the exact dimensions (W x D x H) to ensure they fit your specific shelf or workbench, leaving room for the UV cover to lift off.

The 2025 Ecosystem

A printer is more than just hardware. The surrounding ecosystem of software, support, and consumables is crucial.

Both printers enjoy excellent compatibility with the major third-party slicers, Chitubox and Lychee Slicer. These platforms are the industry standard, and both Phrozen and Elegoo work to ensure their machines are well-supported with ready-to-use profiles.

For connectivity, the Mars 4 Ultra includes built-in Wi-Fi, allowing for wireless transfer of files. This is a modern convenience that many users appreciate. The Sonic Mini 8K S may focus on the proven reliability of USB transfer, which is foolproof but less convenient.

By 2025, both printers have been on the market long enough for a clear picture of long-term ownership to emerge. Spare parts, especially the consumable LCD screens and ACF/FEP films, are readily available for both models from the manufacturers and third-party suppliers. The user communities on platforms like Reddit and Facebook are massive and incredibly helpful for both brands, providing a wealth of troubleshooting advice, custom print settings, and inspiration.

Matching Tech to Goals

The best printer is the one that aligns with your specific needs. We won't make a direct recommendation, but we will help you identify which machine's philosophy might be a better fit for you.

The Sonic Mini 8K S Is For...

The Sonic Mini 8K S is a strong contender for the proven performer. This user values a highly refined and time-tested system. Phrozen has long been a leader in pioneering high-resolution printing, and this model represents the culmination of that experience. It is for the detail purist who understands that print quality is a complete system—a combination of light engine, build stability, and screen technology. This user may prioritize Phrozen's integrated engineering approach over a single marketing number. It's also an excellent choice for users prioritizing reliability and consistent, repeatable performance, who want a machine known for its robust build quality and workhorse-like nature.

The Mars 4 Ultra Is For...

The Elegoo Mars 4 Ultra is a strong contender for the specification-sheet enthusiast. This user wants the highest possible theoretical resolution on paper and enjoys pushing the boundaries of what is possible with the latest technology. The 18-micron XY resolution is a key draw. It's also a great fit for the speed-focused hobbyist. For this individual, faster print times and workflow enhancements like ACF film and Wi-Fi connectivity are top priorities to maximize output and efficiency. Finally, it appeals to the all-rounder who is looking for a feature-packed machine that offers a compelling blend of high resolution, fast printing capabilities, and modern conveniences right out of the box.

Conclusion: 8K vs. 9K

So, is Phrozen's 8K detail really better than Elegoo's 9K? The answer is: it depends on more than just the "K".

The final print quality you hold in your hand is a result of XY resolution, light engine quality, resin choice, and, most importantly, user calibration. A printer with a lower "K" number but a superior, highly uniform light engine and rock-solid build quality can produce results that are visually indistinguishable, or in some cases even superior, to a printer with a higher "K" number but compromises elsewhere. Pixel blur from a lesser light source can easily erase the on-paper advantage of a few extra microns.

The choice between the Sonic Mini 8K S and the Mars 4 Ultra in 2025 is not about choosing a "better" number. It's about understanding their different design philosophies. Phrozen offers a complete, proven system engineered for ultimate detail fidelity. Elegoo pushes the envelope on raw specifications, speed, and modern features. By evaluating the factors we've discussed—from light engines to workflow—you can now confidently determine which approach, and which printer, best aligns with your personal printing goals.

Frequently Asked Questions

Q1: What is XY resolution?

A: XY resolution is the most critical specification for detail. It's the size of a single pixel on the printer's LCD screen, measured in microns (µm). A smaller number means smaller pixels and the potential for finer detail. It's more important than the "K" number, which only tells you the total number of horizontal pixels.

Q2: Is 18µm noticeably better than 22µm?

A: For most users and most models, the difference is extremely subtle. You would likely need magnification or a highly trained eye to spot the difference on a well-calibrated print. The advantage of 18µm is most apparent on incredibly small, intricate details, like the texture on a 28mm-scale miniature. For larger objects, it's often negligible.

Q3: Do I need special resin?

A: You don't need "8K" or "9K" branded resin. However, these high-resolution printers benefit most from high-quality resins specifically formulated for fine detail and fast curing. Standard resins will work perfectly fine, but they may not allow the printer to showcase its absolute maximum potential for sharpness.

Q4: What else affects detail?

A: The printer is only part of the equation. The most important factors for achieving maximum detail are controlled by you in the slicer software. Proper model orientation to minimize layer lines, carefully placed and sized supports, and careful calibration of your exposure times are far more impactful on final print quality than the minor specification differences between top-tier machines. The best printer cannot save a poorly prepared file.
