True 5-Toolhead vs. Filament Cutting/Splicing: A 2025 Deep Dive on Material Waste
The Promise and Problem
Multi-material and multi-color 3D printing has grown from a specialized dream to something accessible for professionals and serious hobbyists in 2025. This ability, however, comes with a hidden cost: filament waste. For anyone running printers for business or working on large, complex projects, wasted material directly affects profits and environmental impact.

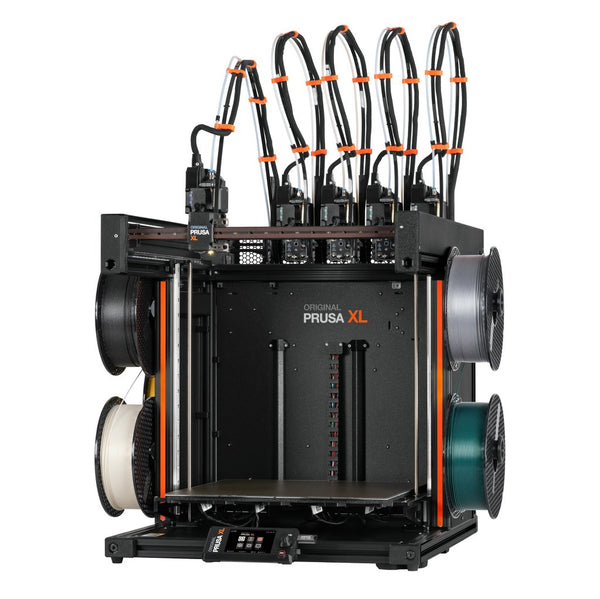

We will examine two main technologies for creating multi-material prints: the dedicated tool-changing system, shown in machines like the Prusa XL with 5 toolheads, and the single-nozzle filament switching system, seen in machines like the Bambu Lab X1C with an AMS.
This article provides an objective, detailed comparison focused on one important question: Which technology wastes less material? We will examine how waste happens, compare real-world situations, and help you understand the true material cost of each approach.
The Toolhead Approach
How It Works
This design features multiple independent extruders and hotends, called toolheads, mounted on a single frame. During a print, only one toolhead is "active" at a time. The "tool change" process is a physical action: the currently active tool is parked at a designated station, and the printer's frame moves to pick up the next required tool. The inactive filaments stay loaded and ready in their respective toolheads, not pulled back over long distances.
Sources of Waste
The main source of waste in this system is the "Wipe Tower" or "Prime Tower." Its purpose is not to remove a previous color, but simply to prepare the nozzle and stabilize pressure after it has been idle, ensuring a clean, consistent start on the model. Since the new nozzle is already loaded with the correct material, it doesn't need to push out a large amount of plastic. As a result, this tower is typically very small and thin, representing minimal material use.
The Single-Nozzle Approach
How It Works
This system uses a single extruder and hotend on the print head. It is fed by an external unit that stores and manages multiple spools of filament. The "filament change" process is more complex. The current filament is fully pulled back from the hotend, through a long PTFE tube, all the way back to the external unit. It is then cut, and the new filament is loaded through that same long path to the hotend.
Sources of Waste
Waste from this method comes from two places. The most significant is the "Purge Block" or, more commonly, the "poop" ejected from a chute. This purge is critical; it must push all the molten plastic of the previous color out of the single hotend to prevent color bleeding into the new section of the print. The second source is the small, cut piece of filament that is snipped off at the external unit during each swap. A key characteristic of this system is that the amount of purged material is substantial and relatively fixed for every single swap, regardless of how little of the new color is needed for that specific layer.
Scenario 1: Two Colors
Tool-Changer Analysis
For a simple two-color print, such as adding text to a sign, waste is extremely low. If the print involves only a few swaps between layers—for example, printing the entire base in one color and then printing the text on top in another—the resulting wipe tower is minimal. The waste would likely amount to just a few grams for the entire print, an insignificant fraction of the model's weight.
Single-Nozzle Analysis
On the same simple print, the waste from a single-nozzle system is moderate to high. Even with only a few color changes, each one requires a full purge cycle. The volume of the purge block is determined by the number of swaps, not the volume of the color being used. For a simple sign, the purged material could easily be 20-50 grams or more. In some cases, the waste can approach or even exceed the weight of the secondary color used on the model itself.
Scenario 2: Five Colors
Tool-Changer Analysis
When printing a complex, five-color model like a detailed miniature or a topographical map with frequent color changes on each layer, waste from a tool-changing system scales linearly but starts from a very low base. Even with hundreds of tool changes, the total volume of the wipe tower remains relatively small. The waste is directly proportional to the number of swaps, but the "waste per swap" is tiny, consisting of only a small priming move.
Single-Nozzle Analysis
This scenario is where the single-nozzle switching technology's main drawback becomes apparent. With frequent swaps on every layer, the waste becomes extreme. The purge block can easily become larger and heavier than the printed model itself.
Consider the math: a complex model might require 400 filament swaps. If each swap purges a fixed volume, say the equivalent of 300mm of 1.75mm filament (~2.9g of PLA), this equals over 1100 grams of pure waste. That is more than an entire 1kg spool of filament, discarded, just to print a single object.
Scenario 3: Multi-Material
Tool-Changer Analysis
This is a key advantage for a true multi-toolhead system. Each toolhead can be set to the specific, optimal temperature for its loaded material. For instance, you can have Tool 1 printing a PLA body at 215°C, Tool 2 printing flexible TPU gaskets at 230°C, and Tool 3 printing soluble PVA supports at 210°C, all in the same print job. There is no risk of thermal damage from holding a material at the wrong temperature, and purges are not an issue. Waste remains minimal, and material integrity is preserved.
Single-Nozzle Analysis
This presents a significant challenge. The single hotend must either find a compromise temperature—which is often suboptimal for all materials involved—or attempt to rapidly change temperature between swaps, adding time and thermal stress. Purging between materials with vastly different melting points (like PLA and TPU) is inefficient and can increase the required purge volume. Furthermore, the risk of nozzle clogs from material incompatibility or residue is significantly higher. For this reason, many flexible and specialty filaments are not officially supported in single-nozzle switching systems, a practical limitation that forces users to alter designs or abandon multi-material goals.
Reducing Waste
Slicer Settings and Tricks
Modern slicers for single-nozzle systems have introduced clever features like "Purge to Infill" or "Purge to a secondary object." These settings use the purged material to form the model's internal infill or to print a separate, "sacrificial" object. However, this has trade-offs. Purging to infill can compromise the structural integrity and consistency of the part, as the infill becomes a mix of colors and potentially different material properties. Purging to an object requires you to print something you may not need, consuming more time and total material. These features don't eliminate the material usage; they just repurpose it. Tool-changing systems do not require such workarounds.
The Ultimate Waste
The Failed Print
We must acknowledge that the single largest source of waste is a failed print. A 20-hour, multi-material print that fails at the 19-hour mark results in 100% waste of all material and time invested. Therefore, system reliability is a critical part of the total waste equation.
Each technology has unique potential failure points in the context of multi-material printing. For a tool-changer, this could be a tool pickup or alignment error. For a single-nozzle switcher, the more common failure points include filament loading/unloading jams in the long tube path, cutter mechanism errors, or nozzle clogs caused by inefficient purging between dissimilar materials. A system that consistently finishes prints, even if its purge mechanics are theoretically less efficient, may prove to be more material-efficient in practice over the long term.
Adding Up the True Cost
Direct Waste Winner
When the sole metric is minimizing direct filament waste from purging and wiping, the dedicated multi-toolhead technology is the clear leader. The difference is not minor; on complex, multi-color prints, the waste reduction can be an order of magnitude or more. The filament saved translates directly into lower operating costs.
Indirect Considerations
While the waste from a single-nozzle system can be partially reduced with advanced slicer settings, this requires more user intervention and comes with its own set of compromises. The overall reliability of the filament change mechanism for the materials you intend to use is a crucial, practical factor that heavily influences the "true" waste over time.
The Right Technology
It's About the Right Tool
As of 2025, the choice is less about the "best printer" and more about the right technology for your specific application and waste tolerance.
For the small business, print farm, or power user whose work involves frequent, complex multi-color prints or printing with diverse material types like flexibles and rigids together, the material savings from a tool-changing system can lead to a significantly lower total cost of ownership. The reduction in filament waste is a direct boost to the bottom line and project sustainability.
For the occasional multi-color user who primarily prints in a single color but wants the ability to add simple logos or accents, the higher waste-per-swap of a single-nozzle system may be an acceptable trade-off for other factors, such as initial hardware cost or a smaller physical footprint.
When choosing a high-end multi-material printer today, understanding the fundamental differences in how each system handles filament changes—and the resulting waste profile—is as crucial as comparing print speed or build volume. Your projects, priorities, and filament budget will ultimately determine which technological philosophy is the right fit for you.
