Is a Cube Frame Really More Stable? Understanding 3D Printer Design

This is a common question in the 3D printing world. When you look at the strong, box-shaped frame of a printer like the Ender-5 S1, you might naturally think it's more stable than the open design of an Ender-3 V3. It's bigger, more enclosed, and simply looks stronger. But is that assumption correct in 2025? The engineering behind 3D printer stability is more complex than it appears, and this article explains the science behind these claims.

This debate compares two different design approaches, clearly shown by these popular machines. On one side, we have the Cube-Style Cartesian system, seen in the Ender-5 S1, where the print head moves left-right and front-back while the bed moves down. On the other side, we have the CoreXZ "bed slinger" design of the Ender-3 V3, where the print head moves left-right and up-down, and the entire bed slides back and forth.

While the cube-style frame offers natural advantages in strength and reduced moving weight that directly improve stability at high speeds, improvements in software and machine design in recent years have significantly reduced the performance difference. This article will explain the science, practical effects, and hidden trade-offs to help you understand which design approach truly matches your printing needs.

Understanding Motion Systems

To understand the stability debate, we must first learn how each machine moves. The differences in their motion systems are the main cause of their different performance characteristics, strengths, and weaknesses. We will examine these mechanics not in abstract terms, but in how they directly help or hurt the final print.

The Cube-Style Cartesian

A printer built with a cube-style frame, such as the Ender-5 S1, works on a simple principle. The print head is mounted on a frame that handles all movement across the flat plane—both left-to-right (X-axis) and front-to-back (Y-axis). The entire build plate, where the print is made, only moves in one direction: down, along the Z-axis, to make space for each new layer.

It is a common mistake to call this design a "CoreXY." While it shares the cube frame and the appearance of a non-moving bed with true CoreXY systems, its motion mechanics are different. A true CoreXY uses a complex, connected belt system where two motors work together to position the print head. The Ender-5 S1 uses a simpler Cartesian system where one motor controls the X-axis and another controls the Y-axis separately. For the user, however, the key point is the motion principle: the print head does all the fast work in the X/Y plane.

The main advantage of this design is its very low inertia. Inertia is an object's resistance to changes in its motion. In 3D printing, rapid changes in direction create vibrations, which hurt both speed and quality. In a cube-style system, the heaviest part of the print—the model itself and the thick build plate—does not speed up and slow down rapidly. It only moves a tiny amount downward after each layer is complete. This greatly reduces the forces that cause print problems. Furthermore, the box frame, with its connected vertical and horizontal supports, creates a naturally strong structure that resists the twisting and bending that can happen during high-speed print head movements.

The CoreXZ Bed Slinger

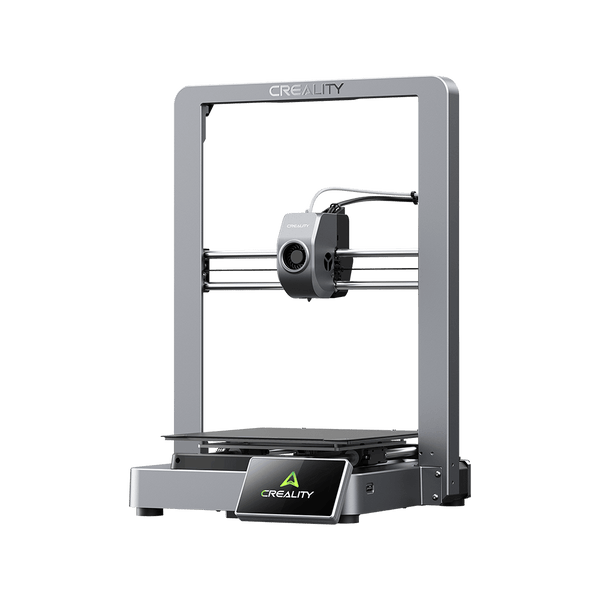

The CoreXZ design, famously used in the Ender-3 V3, is the most recognizable design in desktop 3D printing. Here, the motion is divided differently. The print head moves left-to-right along a frame (the X-axis). This entire frame then moves up and down along two vertical supports (the Z-axis). The critical difference is the Y-axis: the entire build plate moves rapidly forward and backward to create the front-to-back dimension of the print.

This design's main challenge is its high moving weight. As a print grows taller, its weight increases. The Y-axis motor must not only move the bed assembly but also the growing weight of the print itself. Every time the printer needs to draw a line along the Y-axis, it must speed up this entire weight and then slow it down. This constant slinging motion creates significant momentum and vibration.

These vibrations are the direct cause of a common print problem known as "ringing" or "ghosting." These are faint, wavy ripples that appear on the surface of a print, typically after a sharp corner or detail. They are the visible echoes of the frame vibrating after the print head has made a sudden change in direction. While ringing can occur on any axis, it is most noticeable on the Y-axis of a bed slinger due to the large weight being moved. Despite this, the design's popularity is well-earned. It is mechanically simpler, which means lower manufacturing cost and, typically, a lower price for the consumer. Its open design also provides excellent, clear access to the build area, making it easy to remove prints and perform maintenance.

The Stability Showdown

Theory is one thing; real-world results are another. How do these design differences translate to the final objects you hold in your hand? We will analyze performance by looking at speed, the ability to print tall objects, and overall surface quality, using the Ender-5 S1 and Ender-3 V3 as clear examples of their respective designs.

High-Speed and Acceleration

Imagine printing a test cube or a part with sharp, 90-degree corners at speeds over 150mm/s. This scenario immediately shows the core differences.

The cube-style design, with its low-inertia design, excels here. Because only the lightweight print head is moving at high speed, the motors can achieve higher acceleration values with far less resulting vibration. The strong, boxy frame is excellent at reducing what little vibration is created by the toolhead's movement. This means cleaner corners and less visible ringing, even at aggressive speeds, right out of the box.

The CoreXZ design, by contrast, has historically struggled with Y-axis ringing in this scenario. The rapid back-and-forth movement of the heavy bed creates vibrations that damage the print surface. However, this is where modern technology has become a great equalizer. As of 2025, software features like Input Shaping, a core component of Klipper and now integrated into modern Marlin builds, are game-changers. Input Shaping works by measuring the natural vibration frequencies of the printer's frame and then creating counter-movements to actively cancel out vibrations before they become problems. A well-tuned CoreXZ printer running modern software can produce surprisingly clean prints at high speeds, significantly narrowing the performance gap.

The verdict on speed is that the cube-style frame has a higher raw performance ceiling due to its superior physics. It requires less compensation to achieve clean results. However, modern CoreXZ printers, equipped with smart software, have closed the gap to a point where the difference may not be a deciding factor for many users.

Printing Tall or Heavy Objects

Now, consider printing a tall, narrow vase or a dense, solid block of plastic. This is where the design differences are most stark and undeniable.

On a cube-style printer, the print remains almost stationary throughout the entire process. It is built on a platform that only moves downward in slow, precise steps. This results in outstanding dimensional stability from the bottom of the print to the top. There is minimal risk of the print itself wobbling during creation, which is critical for maintaining accuracy over a large Z-height.

On a CoreXZ printer, the situation is completely different. As the tall object grows, it is being slung back and forth on the Y-axis. The tall print can begin to act like an upside-down pendulum. The momentum from the bed's movement can cause a wobble in the print itself, which becomes more pronounced the taller it gets. This can lead to visible surface defects, inconsistent layer lines near the top, or even catastrophic failure from a layer shift or the nozzle knocking the wobbly print over. This is, without question, the CoreXZ design's most significant stability weakness.

The verdict on height is clear: for users who frequently print tall, slender, or top-heavy objects, the stability offered by the cube-style's Z-only bed movement is a distinct and compelling advantage.

Overall Surface Quality

Beyond ringing, what other problems can arise? Neither design is flawless, and the type of potential issue differs between them.

The cube-style design excels at reducing motion-related problems but can introduce its own set of issues. The bed is typically supported by two or even four lead screws for the Z-axis. If this system is not perfectly built, aligned, and constrained, it can suffer from "Z-wobble," where slight imperfections in the lead screws translate into a repeating, band-like pattern on the print's vertical surfaces. Ensuring the large frame is perfectly square during assembly is also critical to its performance.

The CoreXZ design's primary problems are, as discussed, related to Y-axis inertia. However, its Z-axis is often mechanically simpler and more robust. The X-gantry, which is much lighter than a full bed assembly, moves up a pair of lead screws. This simpler system is often less prone to the subtle Z-wobble that can affect cantilevered or poorly constrained cube-style beds.

The verdict on quality is that the source of potential flaws is different. The cube-style's imperfections are often rooted in mechanical assembly and alignment—the squareness of the frame and the precision of the Z-axis system. The CoreXZ's main flaw is rooted in physics—the inertia of the moving bed—which can be largely corrected with modern software.

Practical Trade-offs

The best printer is not just the one that produces the best prints; it is also the one that best fits your workspace and workflow. Stability is a key factor, but it must be weighed against the day-to-day realities of using and maintaining the machine.

Footprint versus Build Volume

Here, the cube-style design has a clear advantage. Because all movement is contained within the printer's frame, its physical footprint is only slightly larger than its build area. An Ender-5 S1 with a 220x220mm build plate has a footprint that fits neatly on a standard tabletop. This makes it an ideal choice for users with limited desk space, or for those who plan to place the printer inside an enclosure for printing high-temperature materials like ABS or ASA.

The CoreXZ design, in contrast, is space-inefficient. To accommodate the full range of motion of the "bed slinger," you need significant clearance both in front of and behind the machine. A printer with a 220mm Y-axis can easily require a total depth of 500mm or more on your workbench. This can be a major constraint in smaller workshops or apartments.

Assembly, Maintenance, and Modding

Simplicity often favors the CoreXZ design. These printers typically arrive in fewer pre-assembled pieces and are faster and more straightforward to build. The open design provides wide, easy access to all the key components—the nozzle, the extruder, the gantry, and the bed—which is invaluable for performing routine maintenance, clearing jams, or installing modifications.

Cube-style printers can be more complex. Assembling the box frame and ensuring it is perfectly square is a critical step that requires care and patience. The belt paths for the X and Y axes are often longer and more enclosed, making them more difficult to access for tensioning or replacement. However, this enclosed nature makes it significantly easier to build a full enclosure around the printer, which is a major benefit for printing engineering-grade filaments.

The Final Verdict: Physics vs. Modern Technology

So, we return to the original question: is the cube frame really more stable?

Yes. From a pure physics standpoint, the cube-style Cartesian design is inherently more stable. By keeping the print bed stationary in the X/Y plane and only moving the lightweight toolhead, it drastically reduces the moving weight and the resulting inertial forces. This makes it fundamentally better equipped to handle high speeds and tall prints with fewer vibration-related problems.

However, "more stable" does not automatically mean "better" for every user in 2025. The landscape has changed. The combination of increasingly rigid CoreXZ frames, standard features like dual Z-axis motors, and, most importantly, sophisticated software like Klipper with its Input Shaping algorithms has dramatically improved the performance of modern "bed slinger" designs. The gap between the two is narrower than ever before.

The choice is no longer a simple one of "stable vs. unstable." It is about understanding and prioritizing a specific set of trade-offs:

• Choose a cube-style design if your absolute priorities are maximizing raw printing speed, achieving the best possible quality on tall and slender objects, and you require a space-efficient footprint.
• Choose a CoreXZ design if you value simplicity, easy access for maintenance and tinkering, a lower cost of entry, and are comfortable relying on well-tuned modern software to achieve excellent high-speed results on the vast majority of prints.

The final thought is this: do not judge a printer by its frame alone. Look at the entire system. A well-built, well-tuned, modern CoreXZ printer can easily outperform a poorly designed or misaligned cube printer. Understand the principles, evaluate the complete machine, and choose the design that best serves your specific needs.

Frequently Asked Questions

Q1: What is a "true" CoreXY system?

A: A true CoreXY system uses a clever belt arrangement where two stationary motors work together to control the X and Y motion of the print head. The belts are looped in a specific pattern so that turning one motor moves the head diagonally, and turning both in the same or opposite directions moves it in the X or Y axis. The end result for the user—a lightweight gantry moving over a stationary bed—is similar to the cube-style Cartesian design of the Ender-5 S1, but the underlying mechanics are more complex and can be more challenging to assemble and tension correctly.

Q2: Can I print fast on a CoreXZ printer?

A: Yes, absolutely. In 2025, printing at speeds of 250mm/s and higher on a CoreXZ "bed slinger" is not only possible but common. The key is a combination of a rigid frame, a powerful part cooling fan, and modern software features. Specifically, Input Shaping is essential. This technology measures the printer's vibrations and actively cancels them out, allowing for high acceleration and speed without the "ghosting" or "ringing" problems that plagued older bed slingers. Proper calibration and tuning are critical to unlocking this performance.

Q3: Does an enclosure affect stability?

A: An enclosure's primary purpose is to maintain a stable, elevated ambient temperature, which is crucial for preventing warping and layer splitting when printing with materials like ABS, ASA, and Nylon. While an enclosure can add a minor degree of rigidity to the overall structure and help reduce acoustic noise, its direct impact on mechanical stability from vibration is minimal compared to the printer's core frame design. Its benefits for thermal stability apply equally to both cube-style and CoreXZ designs.

Q4: Is one design better for beginners?

A: The CoreXZ design, like that of the Ender-3 V3, is often considered more beginner-friendly. The primary reasons are its simpler assembly process and its open, accessible design. When a beginner needs to troubleshoot a clogged nozzle, adjust a belt, or simply learn how the different parts of the printer work, the unobstructed view and easy access of a CoreXZ machine make the learning process much less intimidating than navigating the more confined space of a cube-style printer.
