Two-Head 3D Printer Battle: Bambu Lab H2D (IDEX) vs Prusa XL (Tool Changer) for Perfect Dissolvable Supports

The Search for Perfect Prints

Every experienced 3D printing user knows this frustration well. You design a model with complex internal tunnels, steep overhangs, or delicate details, only to have the final print damaged by stubborn support structures that leave marks when you remove them. Water-dissolvable support materials offer a solution, dissolving away to leave behind a perfect, unmarked surface. The challenge isn't just using two materials - it's managing them well without hurting quality, speed, or creating tons of waste.

In 2025, two top solutions from industry leaders entered the competition, each using completely different engineering approaches to solve this exact problem. In one corner, we have the Bambu Lab H2D, using the Independent Dual Extruder (IDEX) system. In the other corner, the Prusa XL (2-Tool), with its advanced automatic Tool Changing (ATC) system. This article won't pick a winner. Instead, it gives you a detailed, practical comparison to help you decide which system is the right tool for your specific projects, workflow, and needs.

Breaking Down The Two-Material Challenge

The appeal of dissolvable supports is obvious. It gives you complete geometric freedom, allowing you to create previously "impossible" prints with mark-free surfaces. But this ability brings its own technical problems that both the H2D and XL are designed to solve.

The main problems in multi-material printing include oozing and stringing, where the inactive, hot nozzle drips melted plastic onto the active print layer. This can cause cross-contamination, where different material types mix, damaging the part's strength and appearance. To fight this, systems often waste significant amounts of filament to clear the nozzle, creating waste. Finally, the time lost during the material swap process itself adds considerable extra time to the total print time. How each machine handles these four core problems defines what it's like to use.

Two Approaches, One Goal

At their core, the Bambu Lab H2D and Prusa XL (2-Tool) are both trying to perfectly separate the inactive nozzle from the print. Their methods for doing this are completely different.

Understanding The H2D IDEX

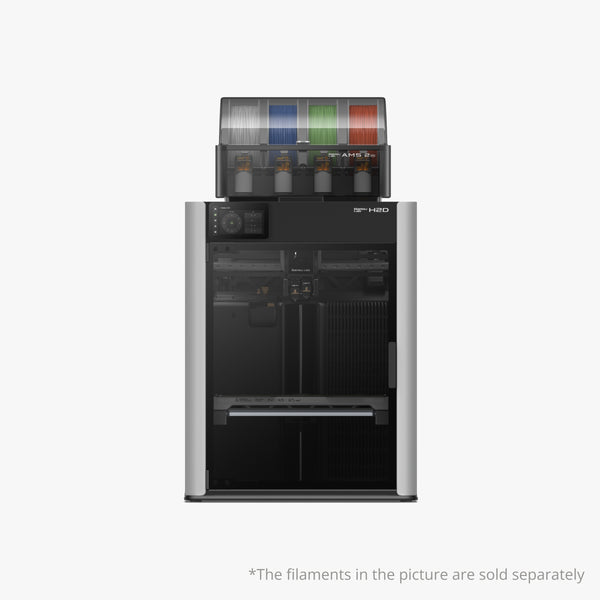

The Bambu Lab H2D uses an Independent Dual Extruder system. This means two complete print heads sit on the same X-axis rail but can move separately from each other. When one head is printing, the other "parks" itself in a service station at the far side of the rail, completely away from the print bed.

This design has built-in advantages. First and most important is the near-complete elimination of ooze contamination on the part itself. Since the inactive nozzle is physically removed from the print area, it cannot drip onto the model. This also means that purge waste is minimized. A small wipe or prime action is still needed when the nozzle becomes active again, but it's much less than what's required to flush a single nozzle shared by two materials. Furthermore, the IDEX system enables special print modes. Duplicate Mode allows the printer to create two identical objects at the same time, effectively doubling output for small-batch production. Mirror Mode does something similar, printing a part and its mirror image at the same time.

However, this approach has its own considerations. The most significant is the impact on build volume. While the H2D has a generous total build area, using both extruders in a dual-material print requires space for the inactive head to park, slightly limiting the maximum printable X-dimension. In Duplicate and Mirror modes, the available X-axis build area is effectively cut in half for each print head. Additionally, the system's precision relies on the perfect calibration of two independent nozzles. The user must ensure their X, Y, and Z offsets are set perfectly for a seamless interface between materials.

Understanding The XL Tool Changer

The Prusa XL takes a different path with its automatic Tool Changing (ATC) system. A single, lightweight carriage moves along the X and Y axes. This carriage travels to a tool rack at the back of the printer to physically pick up and dock different "tools," each being a complete extruder and hotend assembly.

The main advantage of this system is its complete use of the build volume. The active tool, regardless of which one it is, always has access to the full, expansive print bed. This is a critical factor for users looking to create very large objects. The moving carriage is also much lighter compared to a rail carrying two full extruder assemblies. This lower mass can potentially allow for higher accelerations and speeds without introducing print quality problems. The Tool Changer's design is also naturally modular and expandable. While this analysis focuses on the 2-Tool configuration, the architecture is designed to scale up to five tools, offering a future-proof path for more complex multi-material projects.

The main consideration for the Tool Changer is the time overhead associated with each swap. The physical act of moving to the dock, dropping off one tool, picking up another, moving back to the print, and priming the nozzle is a mechanical sequence that adds a fixed number of seconds to every single material change. This can add up significantly on prints with many changes per layer. The mechanical complexity of the docking mechanism, with its kinematic couplings and electrical contacts, also introduces more moving parts and potential points of long-term maintenance compared to the simpler IDEX rail.

Head-to-Head Practicalities

Theory is one thing; performance on the print bed is another. We will now compare the two systems on the key metrics that matter most to a user focused on printing with dissolvable supports.

Dissolvable Support Print Quality

Both systems can produce exceptionally clean results. The critical factor is the quality of the interface layer between the model and the support material. The H2D's IDEX system, by parking the inactive nozzle, offers a brute-force solution to ooze prevention. The risk of the PVA or other dissolvable support material dripping onto the PETG or PLA model is virtually zero. The primary defense is a small wipe tower, ensuring the re-activated nozzle is clean and primed.

The Prusa XL relies on a more active process. Its tool change sequence includes a trip to a purge block or wipe tower where the fresh nozzle is primed to ensure a clean start. PrusaSlicer has highly refined algorithms for managing nozzle temperatures during standby and for creating an effective purge, but there is an inherently higher, albeit small, risk of a stray wisp of material finding its way onto the print compared to the physically separated IDEX system. In practice, both deliver excellent results, but the H2D's method is mechanically simpler in its ooze prevention.

Print Speed and Efficiency

This is a complex comparison where the "faster" printer depends entirely on the model's geometry. A common mistake is to only look at maximum travel speed (mm/s). The real metric is total print time.

Consider a tall, narrow model with hundreds of layers, each requiring a material swap. The Bambu Lab H2D has a clear advantage here. Its "swap" is nearly instant—one head parks, and the other begins printing. The time cost per layer is minimal.

Now, consider a wide, flat model with only a few layers that require support. On this type of print, the Prusa XL's fixed tool-change time overhead happens less frequently. The lighter moving mass of its single tool head might allow it to complete the long print paths of each individual layer faster than the heavier H2D rail, potentially resulting in a shorter overall print time. The tipping point is the frequency of swaps: for prints with many swaps, the H2D's efficiency shines; for prints with few swaps, the XL's potential for higher acceleration on large layers can close the gap.

Filament Waste: Hidden Cost

Here, the difference is stark. The Bambu Lab H2D is the clear winner in minimizing the hidden cost of filament waste. Because the inactive nozzle is parked and can be kept at a lower standby temperature, it only requires a small prime and wipe action upon reactivation. For a typical print, this might result in a small, 10-20 gram prime tower.

The Prusa XL's Tool Changer, by necessity, generates more waste. After a tool has been sitting idle, the filament inside the nozzle has been exposed to heat. To ensure a perfect, clean extrusion, the system must purge a certain amount of material to clear out any cooked or oozed plastic before starting the next layer. This is done into a "purge block." For the same print, the XL might generate a 40-80 gram purge block, depending on the material and settings. Over the lifetime of a printer used heavily for dual-material work, this difference in waste can add up to a significant cost in filament.

Build Volume and Constraints

The raw numbers for build volume can be misleading without context. The Prusa XL boasts a massive 360 x 360 x 360 mm build area, and importantly, this entire volume is available whether you are using one tool or two.

The Bambu Lab H2D also has a large build volume, but its effective use is conditional. In single-extruder mode, you have access to a very wide print area. However, when you activate the second extruder for a dual-material print, you lose a portion of the X-axis to accommodate the parked head. For Duplicate and Mirror modes, the X-axis is split in half. For users whose primary goal is to print the largest possible objects, especially with dissolvable supports, the XL's consistent and unconstrained build volume is a significant advantage.

Workflow: Slicer to Print

Both Bambu Studio and PrusaSlicer are mature, powerful pieces of software. Setting up a dual-material print is straightforward in both. Users can easily assign different materials to the extruders and "paint" on supports exactly where they are needed.

Bambu Studio, known for its streamlined user interface, makes the process feel very integrated. The options for IDEX-specific features like Duplicate and Mirror mode are clearly presented. PrusaSlicer, with its deep roots in the open-source community, offers an incredible depth of customization for users who want to fine-tune every aspect of the tool-change sequence, purge volumes, and temperature profiles. The learning curve might be slightly steeper for a brand-new user, but the level of control is immense. Both slicers are excellent, and the choice often comes down to personal preference for UI design and workflow philosophy.

Maintenance and Reliability

From a user's perspective, long-term reliability is paramount. Both machines are complex, but their maintenance points differ.

For the H2D, the primary long-term task is ensuring the two independent nozzles remain perfectly aligned in X, Y, and Z. While automated probing routines handle much of this, periodic manual checks and calibrations are good practice. The user is essentially maintaining two separate, but coordinated, motion systems.

For the XL, the focus of maintenance is the tool changing mechanism itself. The kinematic docking system must remain clean and free of debris to ensure precise and repeatable tool pickups. The electrical contacts that provide power and data to the tool head must also be kept clean to ensure reliable communication. It's a more centralized but mechanically intricate system to maintain.

Which System Aligns With You?

The best choice is a matter of aligning the machine's strengths with your specific needs. This is not a question of which printer is "better," but which printer is better for you.

The H2D IDEX May Be Your Choice If...

• You frequently print small to medium-sized dual-material parts where minimizing filament waste is a top priority.
• You see clear value in the Duplicate or Mirror modes for accelerating small-batch production of identical or mirrored parts.
• Your projects involve high geometric complexity with many material changes per layer, making the H2D's near-instantaneous swap time a key advantage.
• You are comfortable with the concept of a slightly reduced, but still substantial, build area during dual-material operation.

The XL Tool Changer Is A Fit If...

• You absolutely need to use the maximum available build volume for very large monolithic parts, printed in either single or dual material.
• You envision expanding your capabilities beyond two materials in the future, making the XL's scalable architecture a strategic investment.
• You typically print large models where the number of material changes is relatively low, minimizing the cumulative impact of the tool change time overhead.
• You value the potential performance benefits of a lighter motion system and are willing to accept the associated filament purge as a necessary trade-off for size and expandability.

Choosing Your Path to Complexity

In the end, we are left with two brilliant solutions to the same complex problem. The Bambu Lab H2D represents the elegant efficiency of the IDEX system, where two tools are always on-call and ready for action. The Prusa XL embodies the robust flexibility of the Tool Changer, a system built around the concept of one job being served by many specialized tools.

Both the H2D and the XL are exceptionally capable machines that represent the pinnacle of prosumer multi-material 3D printing in 2025. There is no single winner. The best choice is not determined by the printer's spec sheet, but by the ambition of your own creations. You are now equipped with the deep knowledge to choose the tool that will best bring your most complex ideas to life.
