Metal Guide Rails vs. Bearings: Which 3D Printer Motion System Lasts Longer in 2025?

You're looking at high-speed 3D printers, probably comparing options like the Elegoo Neptune 4 Pro and the Anycubic Kobra 2 Pro. Beyond the eye-catching print speeds, there's a deeper question for smart buyers: how long will these machines last? The biggest mechanical difference between these printers is in their main movement systems. This brings up an important question: which design will last longer and handle heavy use better—the Neptune 4 Pro's all-metal linear guide rails or the Kobra 2 Pro's metal bearings on aluminum tracks?

This article gives you a detailed, fair technical look at these two popular movement systems. We'll go beyond marketing claims to examine how they work mechanically, comparing them on durability, maintenance needs, long-term performance decline, and common failure points. We'll explore how each system handles the stress of thousands of printing hours.

This is a technical exploration, not a product recommendation. Our goal is to give you expert knowledge. By understanding the basic engineering trade-offs, you can make a smart decision that fits your specific needs, your workspace, and your approach to machine maintenance.

Linear Movement Systems

The linear movement system is the backbone of your 3D printer. Its only job is to guide the print head along the X-axis and the build plate along the Y-axis with maximum precision and minimal friction. As printers have developed into high-speed machines, this system has become much more important. It's no longer just about smooth movement; it's about rigidly controlling the toolhead against the intense forces of rapid acceleration and direction changes commanded by firmware features like Input Shaping. A strong movement system is the single most important part for maintaining print quality at speed.

System 1: Linear Guide Rails

As seen on machines like the Elegoo Neptune 4 Pro, the linear guide rail system is a solution borrowed directly from industrial CNC machinery. It has two main parts: a shaped rail made of hardened steel and a bearing block that slides along it. Inside this block are tiny, recirculating steel ball bearings that run in precisely machined grooves, or raceways.

The mechanical principle is one of maximized surface contact and rigidity. The shape of the rail and the matching grooves in the bearing block ensure that loads are spread evenly across multiple contact points. Think of it like a train on a track—it is designed to resist forces from multiple directions (up, down, and side-to-side) with very little bending. This built-in rigidity is the system's greatest strength. It provides a stable, unyielding path for the moving parts, ensuring extreme precision and positional accuracy even under high dynamic loads.

System 2: U-Groove Bearings

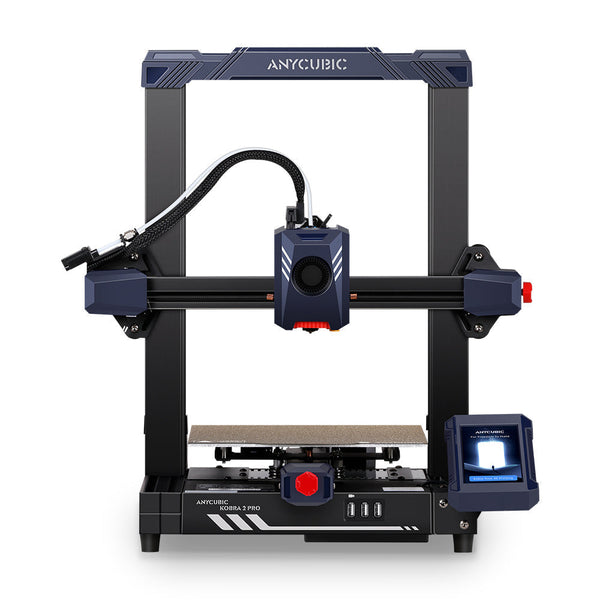

The system used on printers such as the Anycubic Kobra 2 Pro is a smart evolution of the simpler V-slot wheel. It is not just a plastic wheel. This system uses a specific type of metal bearing, often an SG15 U-groove bearing. This component is a steel wheel with an integrated, sealed ball bearing. The "U" shaped groove in the wheel is designed to ride directly on the edge of the printer's standard aluminum frame extrusion.

Its mechanical principle relies on 'hugging' the extrusion. The U-groove limits the movement to a single axis. Tension is a critical, and user-adjustable, variable in this system. This is managed by eccentric nuts. These are special nuts with an off-center hole that, when turned, shift the position of a wheel slightly closer to or further from the extrusion. This allows the user to dial in the perfect amount of pressure, eliminating wobble without creating excessive binding. The built-in strengths of this design are its elegant simplicity, low part count, and the ease with which a user can adjust and tune the system.

Durability Showdown

While both systems work well when new, their long-term durability depends on how they handle wear and tear. They age in fundamentally different ways, with distinct failure modes.

Wear Over Time

For linear guide rails, the primary wear factor is contamination. The internal workings of the bearing block are a high-precision environment. While they are protected by small seals, microscopic dust, airborne pet hair, and fine filament debris are the system's greatest enemies. If these particles manage to work their way past the seals and into the raceways, they can cause pitting—tiny dents—on both the recirculating ball bearings and the smooth surface of the raceways.

Over thousands of hours, this damage builds up. The first sign of failure is not looseness, but roughness. The movement becomes "bumpy" or "gritty" instead of glass-smooth. This may come with an increase in operational noise, often a faint grinding sound. In extreme cases of contamination or lack of lubrication, the block can seize entirely. It's important to note that the hardened steel rail is exceptionally durable; wear is almost always concentrated within the replaceable bearing block.

For U-groove bearings, the primary wear factor is the hardness difference between components. The SG15 steel bearing is significantly harder than the anodized aluminum extrusion it rolls on. Over a very long period of high-speed, high-acceleration printing, the steel wheel can slowly wear a shallow groove into the surface of the aluminum frame. This is a slow process, but it builds up over time.

The failure modes for this system are twofold. First, the integrated bearings within the wheels can fail just like any other bearing, leading to noise or seizing. More commonly, "flat spots" can develop on the wheels if the eccentric nuts are over-tightened for a long period, causing a rhythmic bump during travel. The most significant long-term concern, however, is the wear on the aluminum frame itself. Once a groove is worn into the extrusion, it can introduce "slop" or a slight wobble into the axis that cannot be fully eliminated by adjusting the eccentric nuts.

Real-World Resilience

In a typical workshop or home office, dust and debris are unavoidable. Linear guide rails are naturally more sensitive to this environment. The seals on the bearing blocks offer good protection against larger particles, but fine, abrasive dust can eventually find its way in. This system performs at its peak and for the longest duration in a relatively clean environment or inside an enclosure.

U-groove bearings are, by contrast, more resilient to a dusty environment. The open design of the wheel-on-extrusion system tends to push larger debris out of the path, much like a train cowcatcher. It is a more forgiving system in this regard. However, there is a caveat: if abrasive particles, like those from carbon fiber-filled filaments, get trapped between the steel wheel and the softer aluminum, they can become embedded and act like sandpaper, dramatically speeding up the wear on the aluminum extrusion.

When it comes to the impact of high-speed printing, linear guide rails excel. Their exceptional rigidity means they resist the intense, oscillating forces of rapid directional changes without flexing. This ensures that the print head's position is always precisely where the firmware intends it to be, which is crucial for dimensional accuracy and minimizing artifacts like ghosting.

U-groove bearings also perform well, but their performance is critically dependent on proper tension. If the eccentric nuts are too loose, the high accelerations can induce micro-wobble, compromising surface finish. If they are too tight, it not only increases the strain on the stepper motors but also significantly speeds up the wear on the aluminum extrusion, creating the very grooves the system seeks to avoid.

Ownership Experience

Beyond raw performance, the day-to-day experience of owning and maintaining these systems differs significantly in terms of routine tasks, repairability, and associated costs.

The Maintenance Routine

Caring for linear guide rails requires diligence and precision. The maintenance schedule involves two key tasks: cleaning and lubrication. Wiping down the exposed steel rails with a lint-free cloth to remove dust and old lubricant is a must. This should be done regularly.

Lubrication is crucial for the longevity of the internal bearings. This requires a specific type of light grease, not oil. A PTFE-based synthetic grease, such as Super Lube, is an industry standard. It must be applied sparingly; a thin film on the rail is all that's needed. The bearing block will pick it up and distribute it internally. This should be done periodically, roughly every 200 to 400 print hours, depending on usage and environment. Over-lubricating is as harmful as under-lubricating, as excess grease becomes a magnet for dirt and debris.

Caring for U-groove bearings is mechanically simpler. Cleaning involves a quick wipe of the aluminum extrusions and the wheels with a cloth to remove any accumulated dust. The primary maintenance task is adjustment. Over time, the wheels can wear slightly, or the frame can settle, potentially introducing a tiny bit of wobble. Periodically—perhaps every 100 hours of printing—one should check each axis for play by gently trying to wiggle the carriage. If any looseness is detected, a simple turn of the eccentric nut is all that's needed to restore proper tension. This is a skill that is easy to learn. Regarding lubrication, this system is generally considered "low-to-no" maintenance. The ball bearings inside the steel wheels are sealed and lubricated for their lifespan. No external lubricant should be applied to the extrusion or wheels, as it will only attract dirt and speed up wear.

Repair and Costs

When something eventually goes wrong, the repair process for each system presents a different set of challenges. For a linear rail system, the most likely failure is a worn or damaged bearing block. The repair involves replacing this block. This requires partial disassembly of the axis to slide the old block off and the new one on. Replacement bearing blocks are moderately priced components, readily available from industrial suppliers. The key is sourcing the exact size (e.g., MGN12H) and ensuring the preload (the internal tightness of the block) matches the original to maintain performance. The rail itself is rarely damaged and almost never needs replacement.

Fixing a U-groove bearing system can be either incredibly simple or very difficult. In the first scenario, a wheel's internal bearing fails. This is an easy and inexpensive fix. The wheel is a single component held on by a bolt. Replacement wheels are cheap and widely available.

The second scenario is the system's weak point: the aluminum extrusion has a significant groove worn into it. Because the extrusion is an integral part of the printer's structural frame, replacing it is a major, often impractical, repair. It would require a near-complete teardown of the printer. This is not a common failure and should be considered a very-long-term wear concern, something not typically seen in the first year or two of heavy use, but a theoretical endpoint for the system's lifespan.

Diagnosing Wear

As these systems degrade, they leave tell-tale signs in your prints. Learning to diagnose these issues can help you identify when maintenance or repair is needed.

Signs of worn linear guide rails often show up as subtle, inconsistent artifacts on the vertical surfaces of a print. This can appear as a form of Vertical Fine Artifacts (VFA) that isn't perfectly regular. If the wear is significant, you might feel a "bumpy" or gritty texture on the print surface that corresponds to rough spots in the rail's travel. The most obvious sign is audible noise—any grinding, clicking, or scraping sound during movement is a clear indicator that the bearing block is contaminated or damaged.

Signs of worn U-groove bearings or their extrusions are different. The most common issue is Z-wobble or inconsistent layer stacking, which often points to loose eccentric nuts that need adjustment. If a wheel or its internal bearing is failing, it can momentarily jam or skip, potentially causing a dramatic layer shift in the print. The most definitive sign of long-term wear is a visible groove worn into the aluminum extrusion. You can often feel this by running a fingernail across the extrusion path. This physical groove can lead to inconsistent motion and can be a source of persistent, hard-to-diagnose print quality issues.

Comparison Table

Conclusion

We have established that as of 2025, both linear guide rails and metal U-groove bearings are highly effective motion systems for high-speed 3D printing. The choice between them is not about which is universally "better," but rather which philosophy of machine ownership you prefer.

Linear guide rails represent a precision engineering solution. They offer a higher ceiling for absolute rigidity and positional accuracy, making them ideal for users pushing the boundaries of speed and precision. However, they demand a more disciplined approach to maintenance—a commitment to cleanliness and a proper lubrication schedule. They are for the user who treats their printer like a precision instrument and enjoys the process of maintaining it as such.

U-groove bearings on aluminum extrusions are a robust, practical, and field-serviceable solution. They are more resilient to less-than-perfect environments and are significantly simpler to maintain with basic mechanical adjustments. Their ultimate long-term durability is theoretically limited by wear on the printer's aluminum frame, but the primary wear components (the wheels) are cheap and easy to replace. This system is for the user who values a workhorse machine that tolerates a bit of dust and can be kept running smoothly with a wrench and a few minutes of tuning.

Consider your own habits and workspace. Are you a careful operator who finds satisfaction in the precise tuning and maintenance of machinery? Or do you need a reliable tool that can function well with minimal fuss and be easily adjusted on the fly? Answering that question will tell you which of these durable, high-performance systems is the right long-term partner for your creative projects.
