Product Parameters
| Feature | Specification |
| Sheet Size | 330 x 250 mm |
| Max. Forming Area | 280 x 200 mm |
| Max. Forming Depth | 200 mm |
| Sheet Thickness Range | 0.3 - 3.0 mm |
| Machine Dimensions (W x H x D) | 400 x 405 x 335 mm |
| Machine Weight | 10 kg |
| Heater Type | Ceramic Heater |
| Pump Type | Built-in Vacuum Pump |
| Standard Power | 1.32 KW |
| Input Voltage | 220V / 50Hz |
| Noise Level | 65 dB |
| Control | Digital Interface with Pre-set Material Profiles |
Material Compatibility
| Plastic Type | Forming Temp (Reference Only) | Common Applications | Key Properties |
|---|---|---|---|
| HIPS | 160°C | Displays, Packaging, Food & Cosmetics | Low cost, Easy to color & glue |
| ABS | 170°C | Car parts, Enclosures, Toys | Strong, Durable, Impact-resistant, Machinable |
| PVC | 170°C | Car parts, Outdoor products | Solvent resistant, Medium strength |
| PETG* | 150°C | Packaging, Chocolate molds, Medical applications | Food safe, Lightweight, Clear, Impact-resistant |
| Acrylic (PMMA) | 170°C | Lighting, Bath/Sanitary products | High strength, but brittle |
| Polycarbonate (PC) | 190°C | Lenses, Helmets | Tough, Flame resistant, Self-extinguishing |
| Polyethylene (PE) | 150°C | Packaging, Product packaging | Flexible, Impact-resistant |
| Polypropylene (PP) | 175°C | Wraps, Boxes, Toys | High flexibility, Easy to cut |
| EVA | 70°C | Crafts, Liners | High flexibility, Easy to cut |
| Kydex* | 180°C | Holsters, Scabbards, Aircraft panels | Tight dimensional control, Precise |
Smart & Simple Operation: An intelligent system with pre-set heating programs for 10+ common plastics (PETG, HIPS, ABS, Kydex, etc.). Just select your material on the simple interface and press start.
Industrial-Grade Ceramic Heater: A powerful 1.32KW ceramic heater provides consistent, even heat across the entire sheet for reliable, high-quality results and a long lifespan.
Powerful Built-in Vacuum: No external vacuum is needed. The integrated pump delivers strong, immediate suction to capture intricate details and sharp corners.

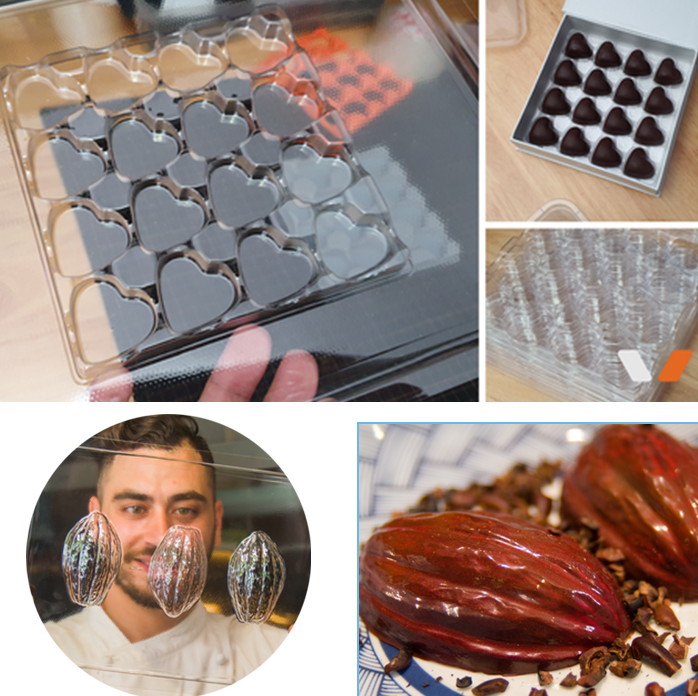

Create Molds in Minutes: The perfect, high-speed alternative to silicone molds. Go from a 3D-printed master to a durable, food-safe (with PETG) mold for chocolate, crafts, or packaging in under a minute.

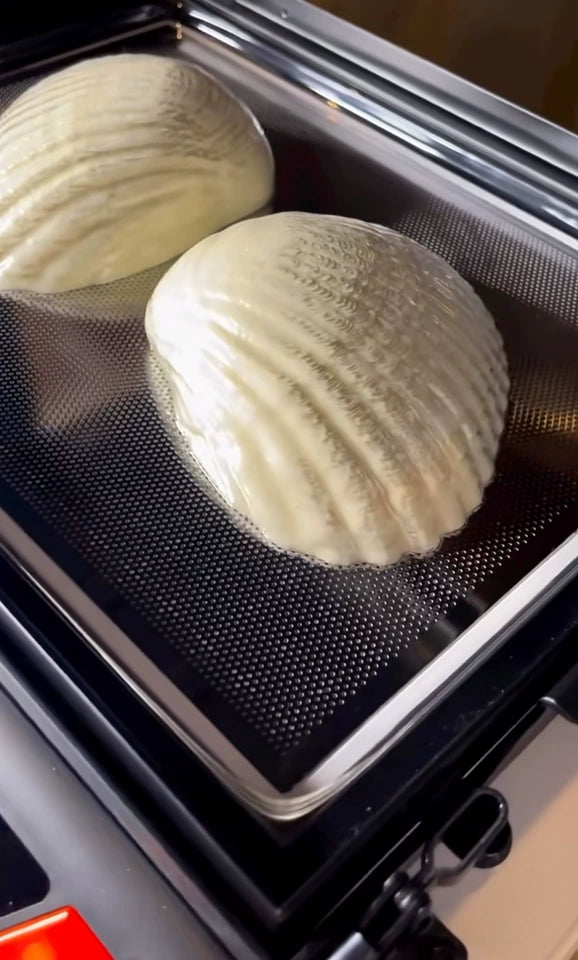

Capture Fine Details: The combination of precise heat control and strong suction allows the machine to pick up details "finer than a grain of sand" from your master object.

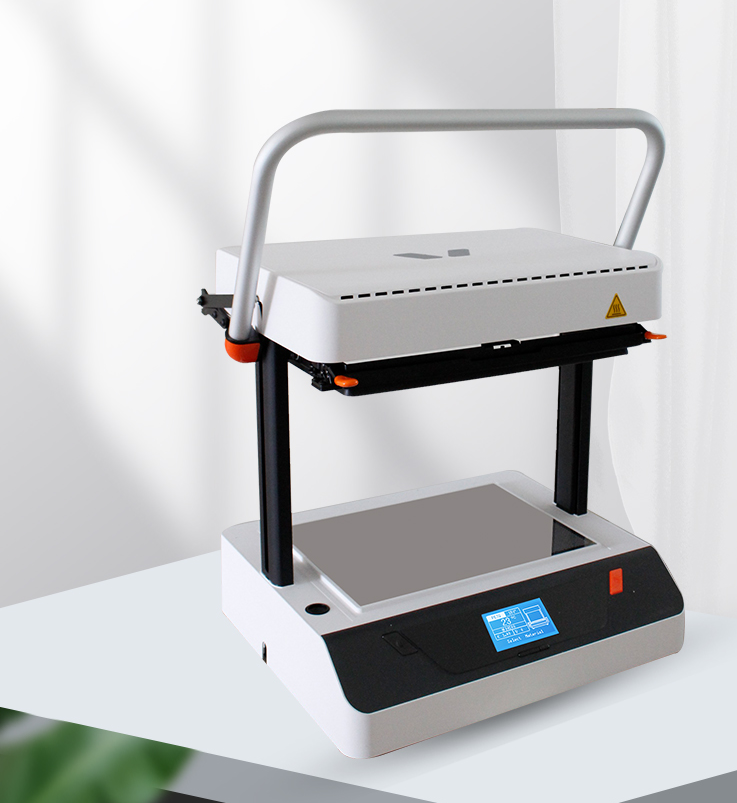

Compact & Durable: A sturdy, desktop-sized machine (10kg) built with durable materials, featuring ergonomic levers for easy, comfortable operation.
Industrial-Grade Ceramic Heater: A powerful 1.32KW ceramic heater provides consistent, even heat across the entire sheet for reliable, high-quality results and a long lifespan.
Powerful Built-in Vacuum: No external vacuum is needed. The integrated pump delivers strong, immediate suction to capture intricate details and sharp corners.
Create Molds in Minutes: The perfect, high-speed alternative to silicone molds. Go from a 3D-printed master to a durable, food-safe (with PETG) mold for chocolate, crafts, or packaging in under a minute.
Capture Fine Details: The combination of precise heat control and strong suction allows the machine to pick up details "finer than a grain of sand" from your master object.
Compact & Durable: A sturdy, desktop-sized machine (10kg) built with durable materials, featuring ergonomic levers for easy, comfortable operation.
